DAS Trader Pro - monitoring a variable

This is a continuation of the previous post https://www.guardiantrading.com/das-trader-pro-how-to-target-vwap/ where I showed how to target the VWAP. Knowing that we can read any indicator/study into a variable this one will show how to monitor for an event like "The price crossing a moving average"

With this technique, it is possible to monitor for any event present on the chart. Being moving average crossings, price action crossing studies etc.

Objectives

monitor for the price crossing a moving average
take an action in such event

Case study

For this example let's say we want to exit an existing position, if the price goes below a moving average.

This can be used in multiple scenarios

as a target profit taking as from the previous article
as a stop loss
as a notification

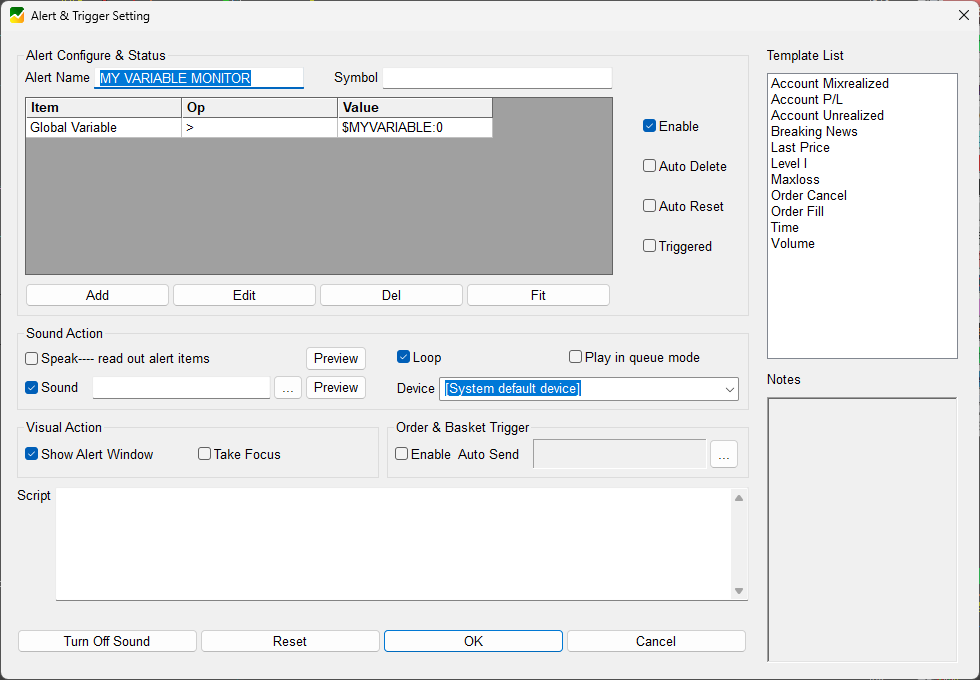

While a standard alert that monitors a variable looks like this,

it monitors for the absolute value specified in the alert. Meaning, if the value is higher than 0, it will trigger the alert. The comparison of 2 variables is just not possible yet, so we will need to find a workaround.

The workaround

Simply enough, we can run the comparison logic endlessly in the chart update script and monitor just for the event when the condition is true.

Example:

If the price is below the 50 Simple Moving Average, return 1, otherwise return 0.

Preparations

Studies and the chart update script

First of all, we need to know the moving average value as it changes in real time. This has been explained in the previous posts: https://www.guardiantrading.com/das-trader-pro-reading-study-values/ and https://www.guardiantrading.com/das-trader-pro-how-to-save-the-stop-loss-price-value-for-later

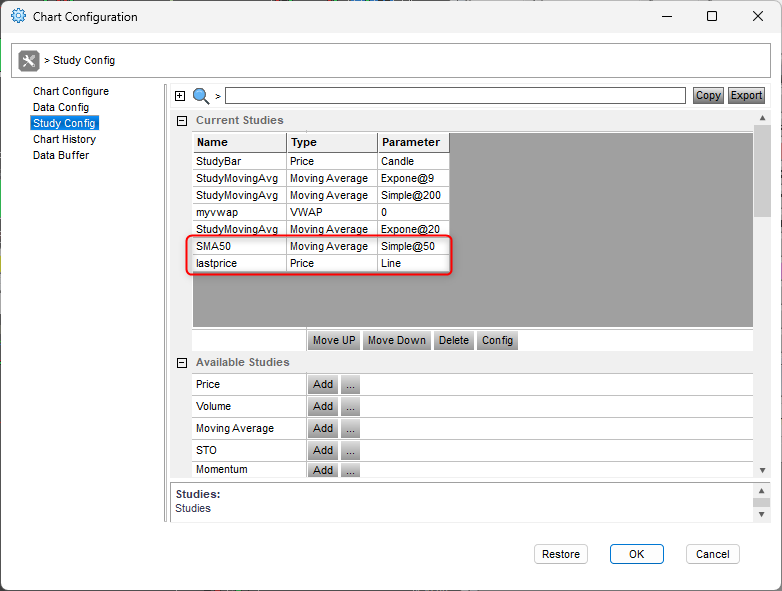

To achieve that, we need a dedicated chart that will display the symbol chart with the study. The chart has to contain at least 2 studies. The price study and the moving average study. Both need to have a custom name that will be used in the scripts.

To read the current symbol's moving average value, we need a chart update script in the dedicated chart.

After that, we need to compare those values and return the resulting status variable. Our status variable will be called

PR_BLW_50_SYMB (short for Price Below 50 SMA)

For example, for Tesla it will be dynamically named PR_BLW_50_TSLA, for Intel it will be PR_BLW_50_INTC and so on.

setvar("SMA50_"+SYMB,getwindowobj(NAME).getstudyval("SMA50"));
setvar("LASTPRICE_"+SYMB,getwindowobj(NAME).getstudyval("LASTPRICE"));
if (getvar("SMA50_MON_ENABLED_"+SYMB)>0)
{
if (getvar("LASTPRICE_"+SYMB)<getvar("SMA50_"+SYMB))
{
setvar("PR_BLW_50_"+SYMB,1);
}
else
{
setvar("PR_BLW_50_"+SYMB,0);
}
}
else
{
delvar("PR_BLW_50_"+SYMB);
}

The script also contains a check if the functionality is enabled or disabled. In case it is disabled, it will delete the variable completely so it can never be >0 if disabled even as a leftover.

The exit hotkey

This is the universal exit hotkey from the previous post https://www.guardiantrading.com/das-trader-pro-universal-exit-hotkey-function-for-all-market-hours/ . It needs to be named as Exit

$montage=getwindowobj("Montage1");
$MYPOS=GetAccountObj($montage.account).getposition($MONTAGE.Symbol).share;
if ($MYPOS==0)
{
MsgBox("No position to close");
}
else
{
$MONTAGE.CXL ALLSYMB;
if ($MYPOS>0)
{
$Montage.price=$montage.last*0.98;
}
else
{
$Montage.price=$montage.last*1.02;
}
if ($MONTAGE.price>=1)
{
$MONTAGE.Price=Round($Montage.price,2);
}
else
{
$MONTAGE.Price=Round($Montage.price,4);
}
//set your exit route
$MONTAGE.ROUTE="LIMIT";
$MONTAGE.Share=$MONTAGE.POS;
$MONTAGE.Send=Reverse;
}

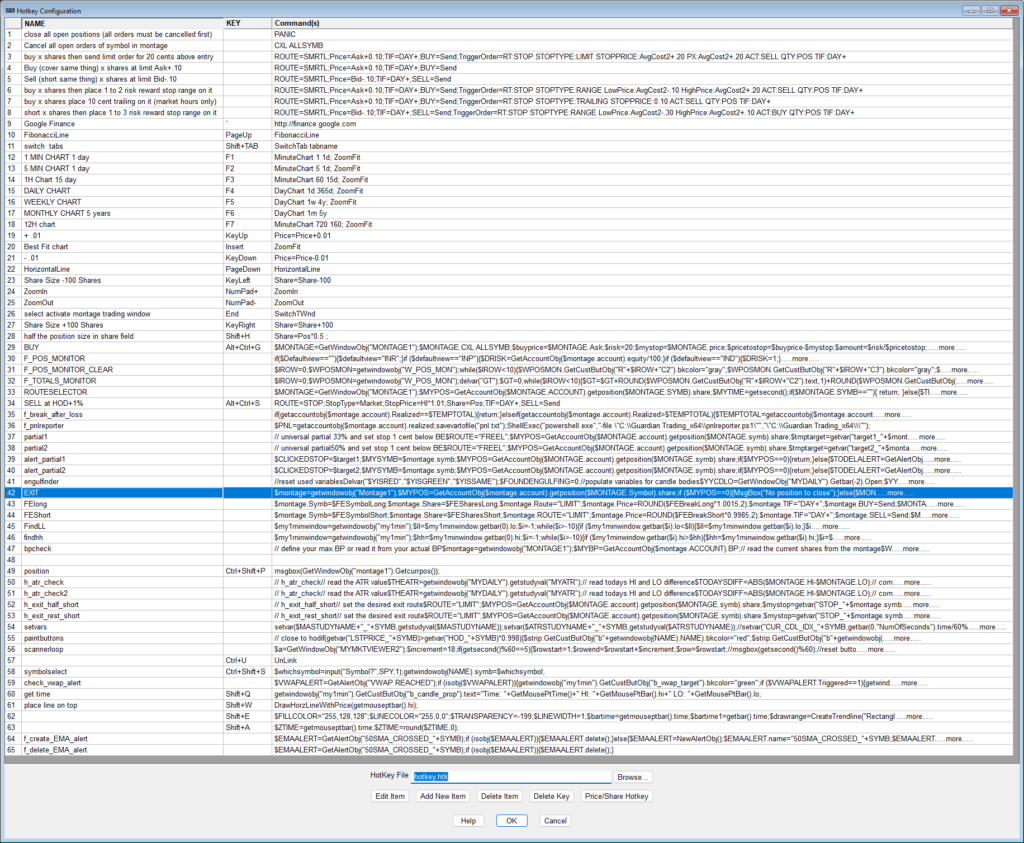

Create and delete alert hotkeys

Let's create two named hotkeys, which we will use as functions later on

f_create_EMA_alert

$EMAALERT=GetAlertObj("50SMA_CROSSED_"+SYMB);
if (isobj($EMAALERT))
{
$EMAALERT.delete();
}
else
{
$EMAALERT=NewAlertObj();
$EMAALERT.name="50SMA_CROSSED_"+SYMB;
$EMAALERT.AddItem("Global Variable",">","$PR_BLW_50_"+SYMB+":0");
$EMAALERT.Script="$montage.symbol="+SYMB+";$montage.exechotkey\(\"EXIT\"\);";
$EMAALERT.save();
}

and

f_delete_EMA_alert

$EMAALERT=GetAlertObj("50SMA_CROSSED_"+SYMB);
if (isobj($EMAALERT))
{
$EMAALERT.delete();
}

As their titles say, they will create and delete the alert objects when called.

The enable/disable functionality button

We need a button under each chart where we want to monitor the event. The button needs to be named b_monitor_SMA50 so that we can change its colors in the script.

The button script goes as below:

if (getvar("SMA50_MON_ENABLED_"+SYMB)>0)
{
setvar("SMA50_MON_ENABLED_"+SYMB,0);
getwindowobj("my1min").GetCustButObj("b_monitor_SMA50").bkcolor="gray";
exechotkey("f_delete_ema_alert");
}
else
{
setvar("SMA50_MON_ENABLED_"+SYMB,1);
getwindowobj("my1min").GetCustButObj("b_monitor_SMA50").bkcolor="green";
exechotkey("f_create_ema_alert");
}

The code works as a toggle.

If the functionality is enabled

It disables it,
Sets the button color to grey,
Calls the delete EMA alert hotkey to delete the alert object

If the functionality is disabled

It enables it,
Sets the button color to green
Calls the create EMA alert hotkey to create the alert object

See it in action

Notice how the alert triggers when the price crosses the green MA on the chart and how the button press creates and deletes the alert object in the Alert & Trigger window.

For more advanced scripting, You can visit my substack - Peter's Substack where I elaborate on the newest features, ideas and do custom solutions for specific needs.

Author: PeterB
